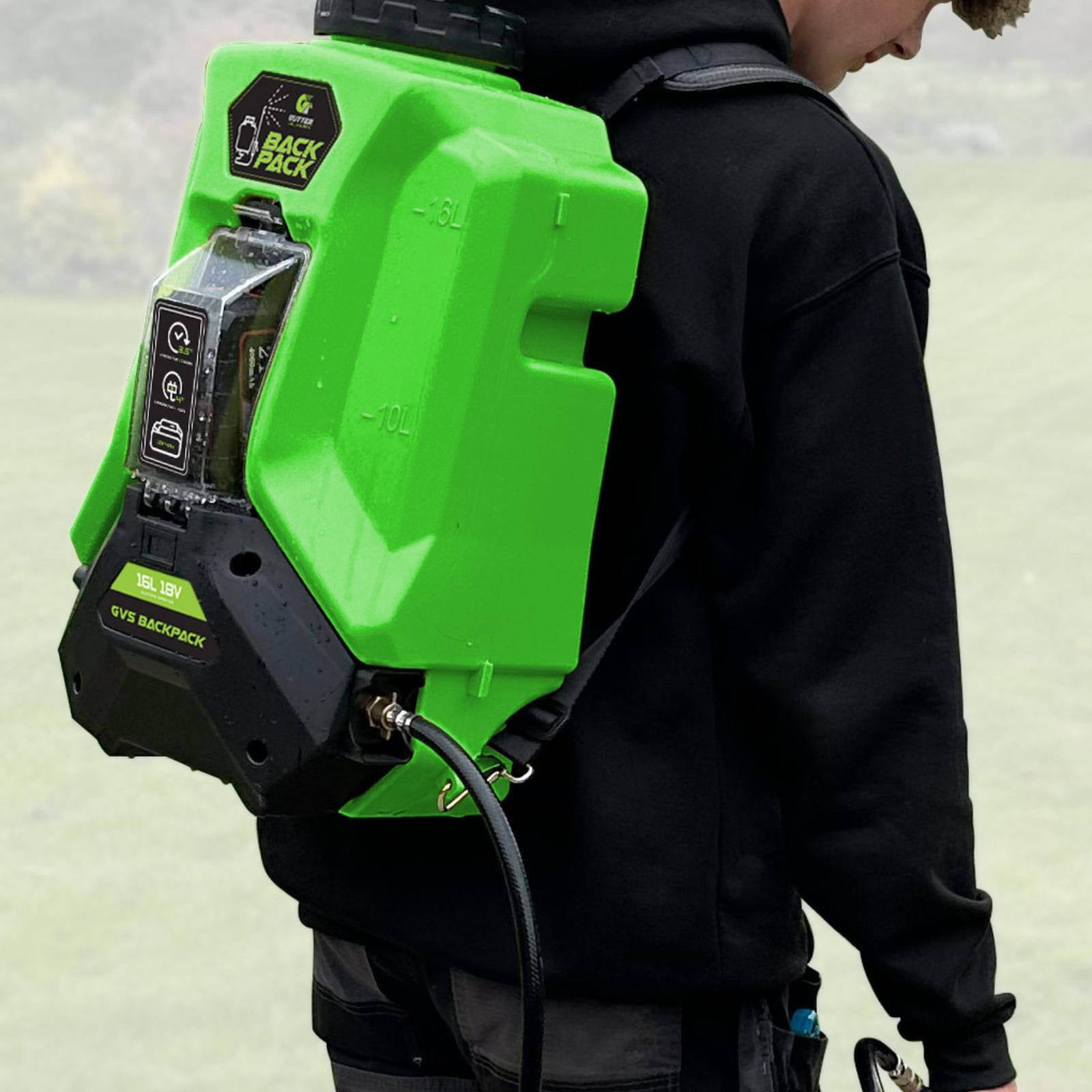

The GVS Backpack Sprayer

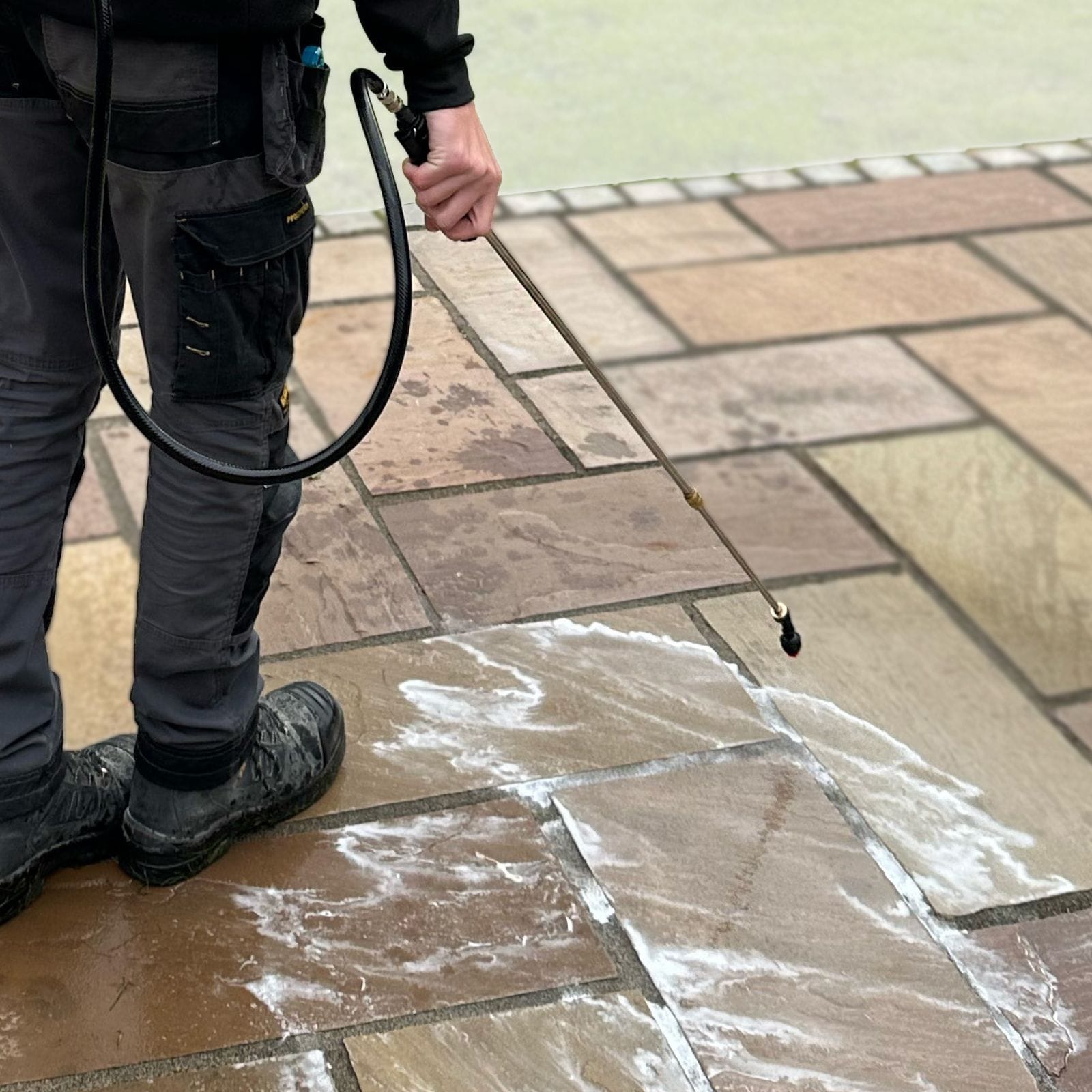

The GVS Backpack Sprayer is designed for professional window cleaning and soft washing applications. Durable, lightweight, and portable, it is ideal for both professional and home use.

The sprayer can be used with a variety of solutions and solvents, including pure water, biocide, water based sealers, making it a versatile tool for many cleaning tasks.

Specifications:

• Working time: 3.5 hours
• Charging time: 4 hours
• Tank capacity: 16L

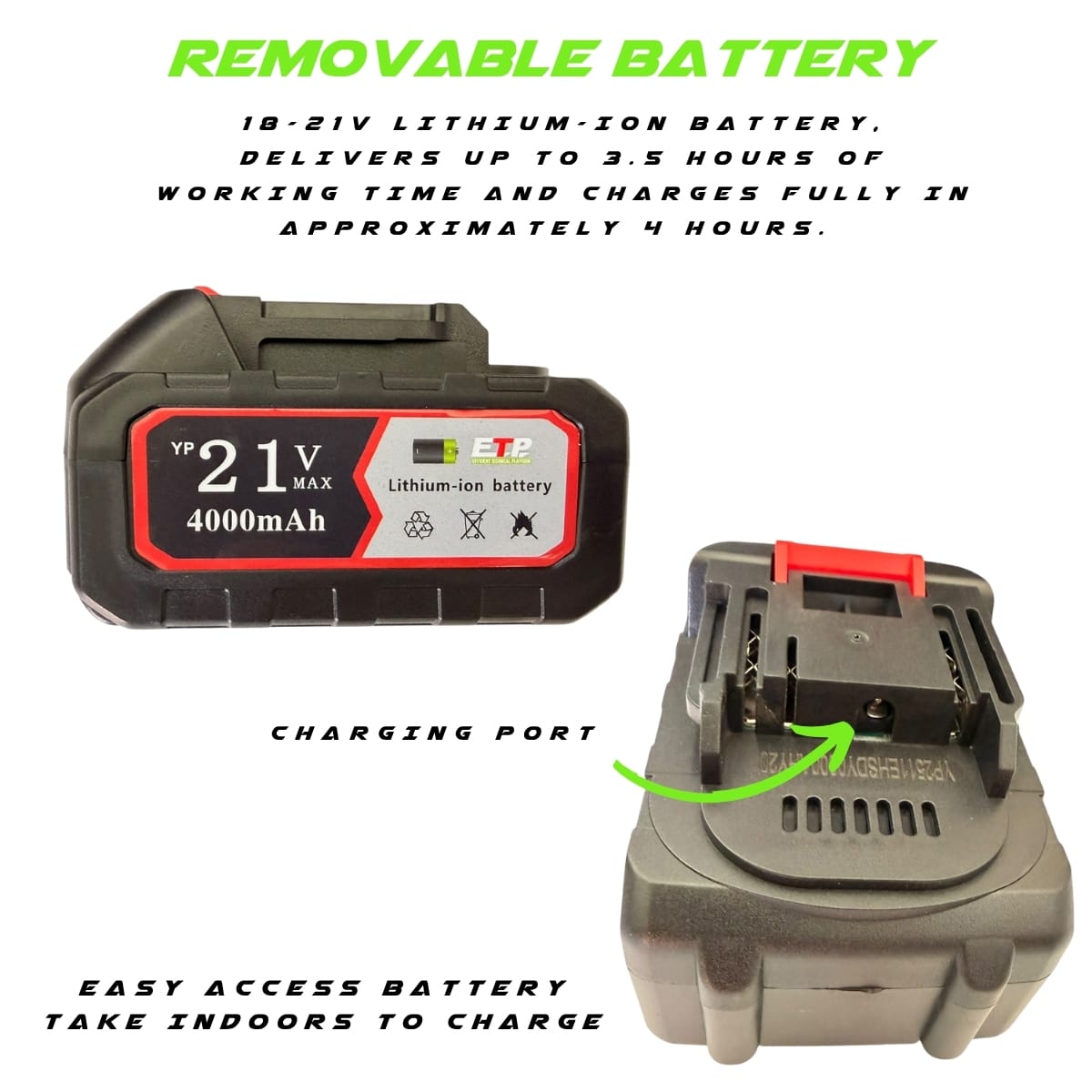

• Battery: 18–21V lithium-ion (included with charger)
• Working temperature range: 0°C – 38°C
• 95 PSI

Key Benefits:

• Individual nozzle designs increase coverage area for faster and more efficient spraying
• Adjustable straps provide a comfortable, customised fit
• Lightweight and portable for easy use on longer jobs
• Compatible with Makita batteries

Backpack Includes:

• 1 × Extendable lance (53cm/21″ collapsed / 99cm/39″ extended)
• 1 × Adjustable shoulder straps

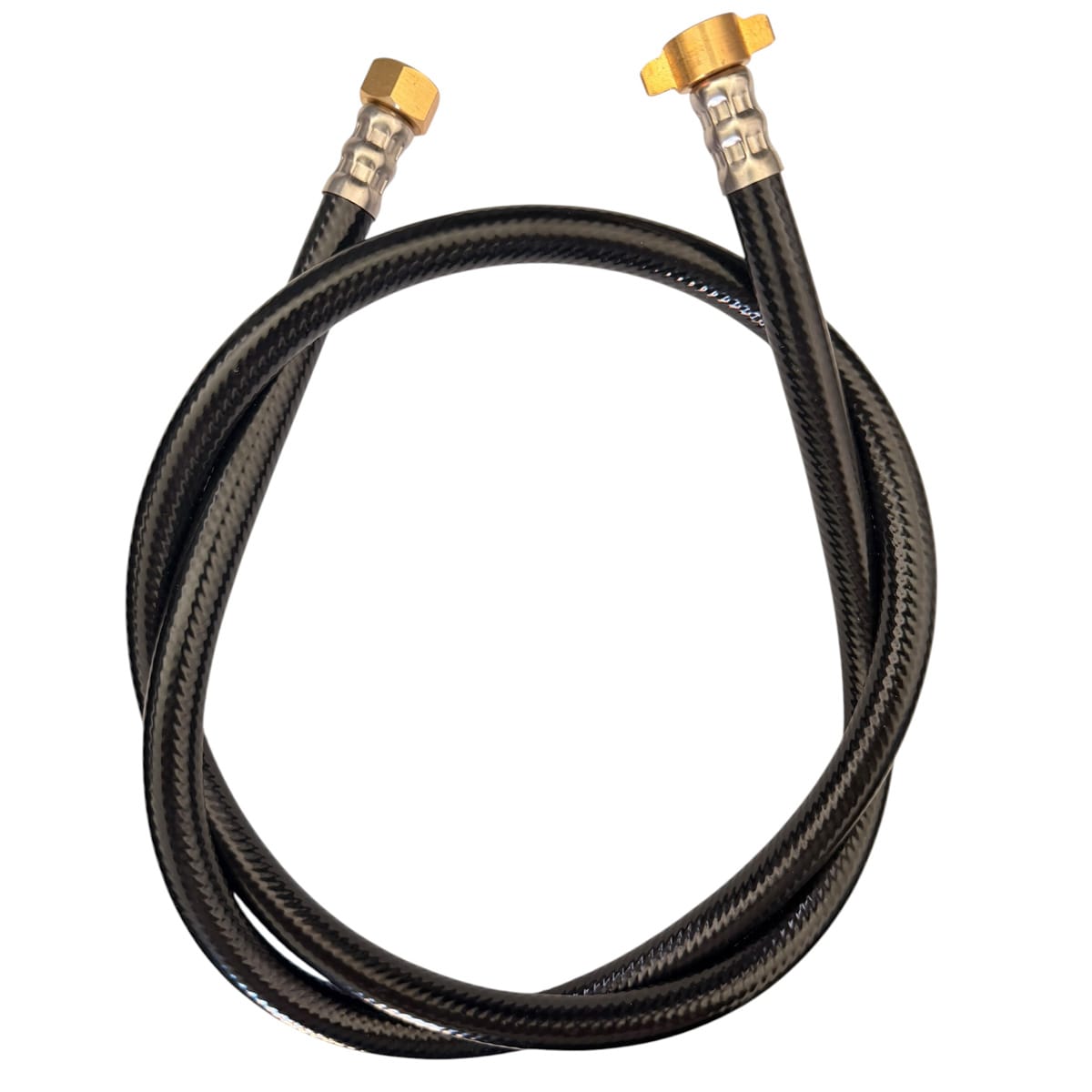

• 2 × Hoses (1 x hose with lance) (1 x hose with female 21 series connection or female 26 series with series 26 male or Claber® Aquastop)

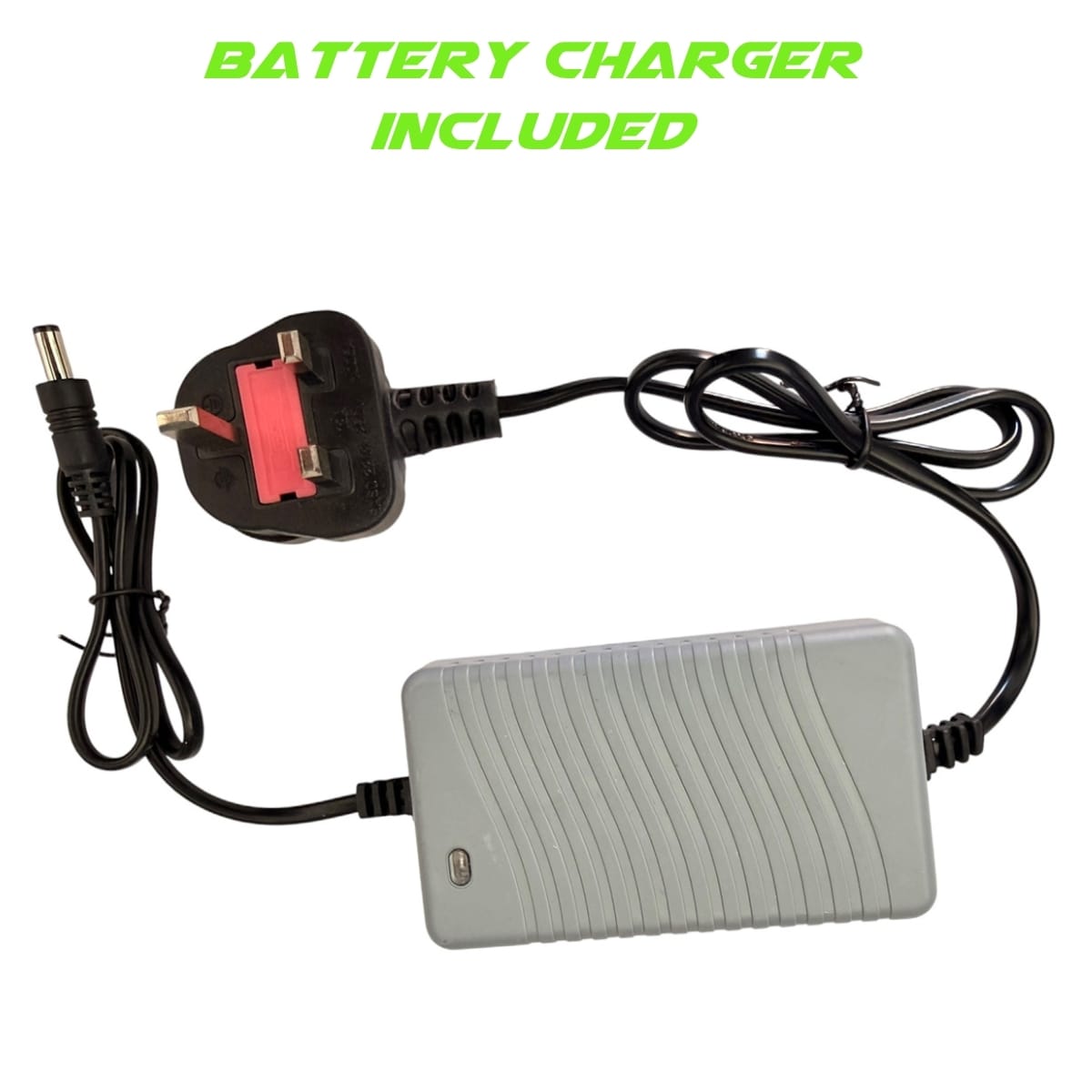

• 1 x Battery and charger

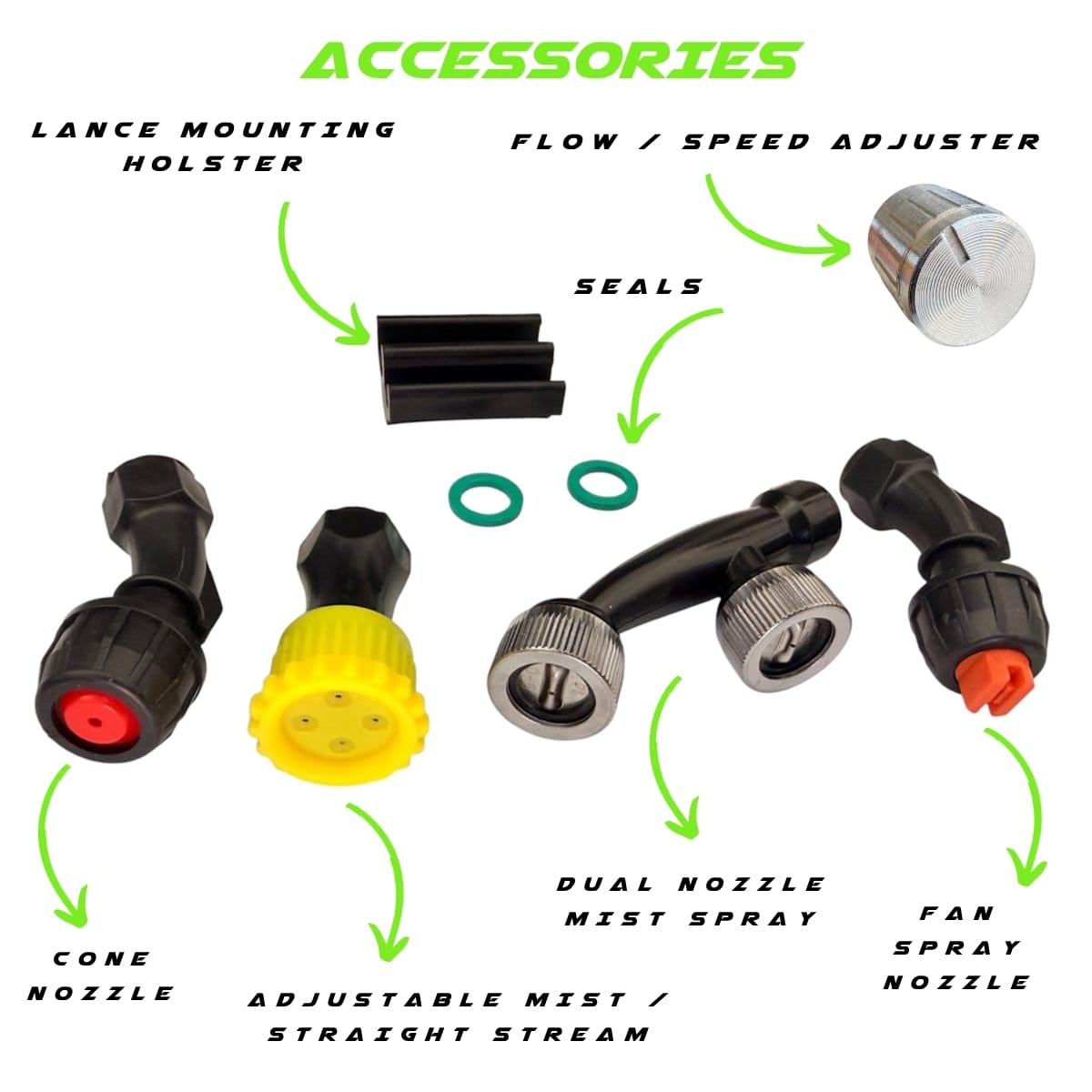

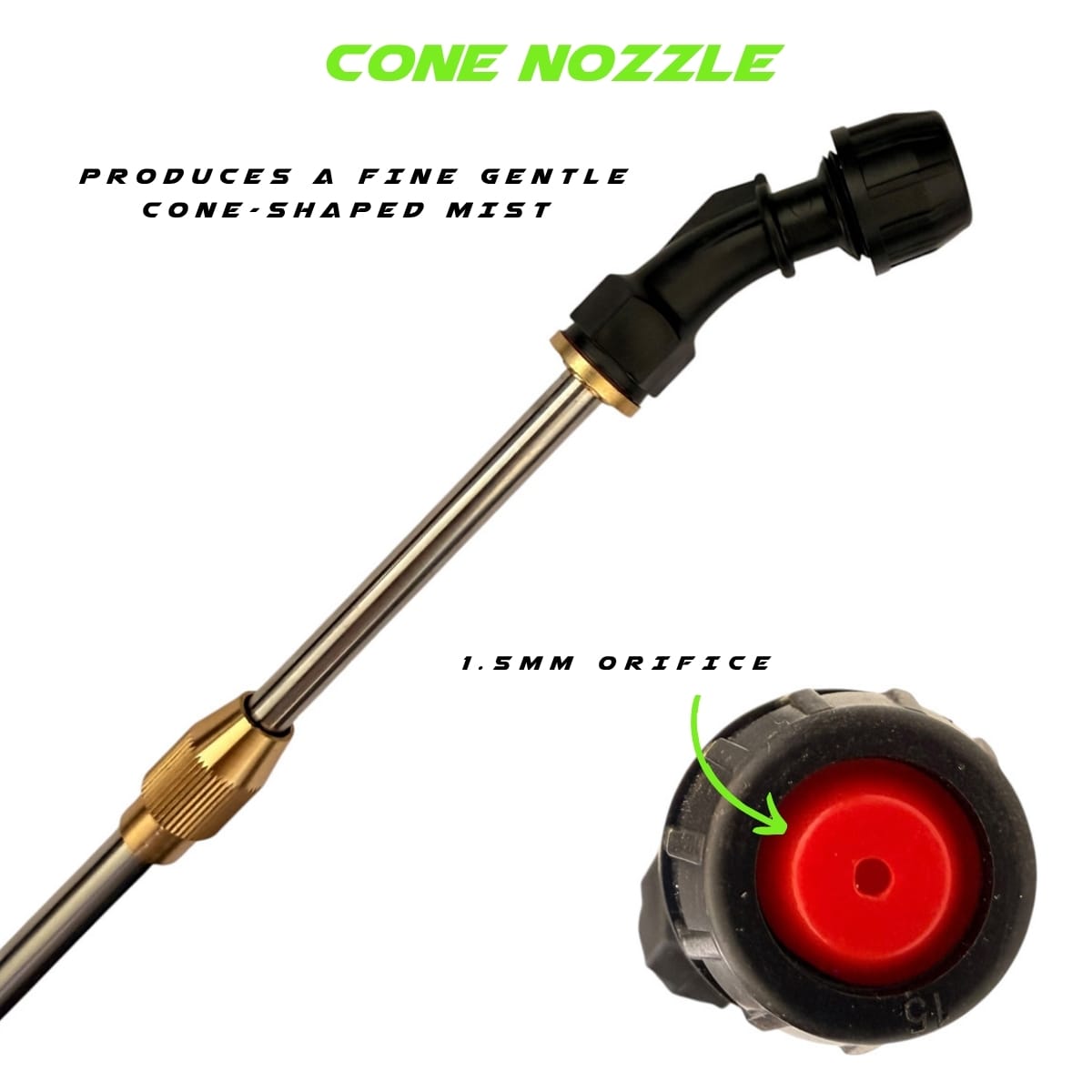

• 1 x Cone nozzle 1.5mm

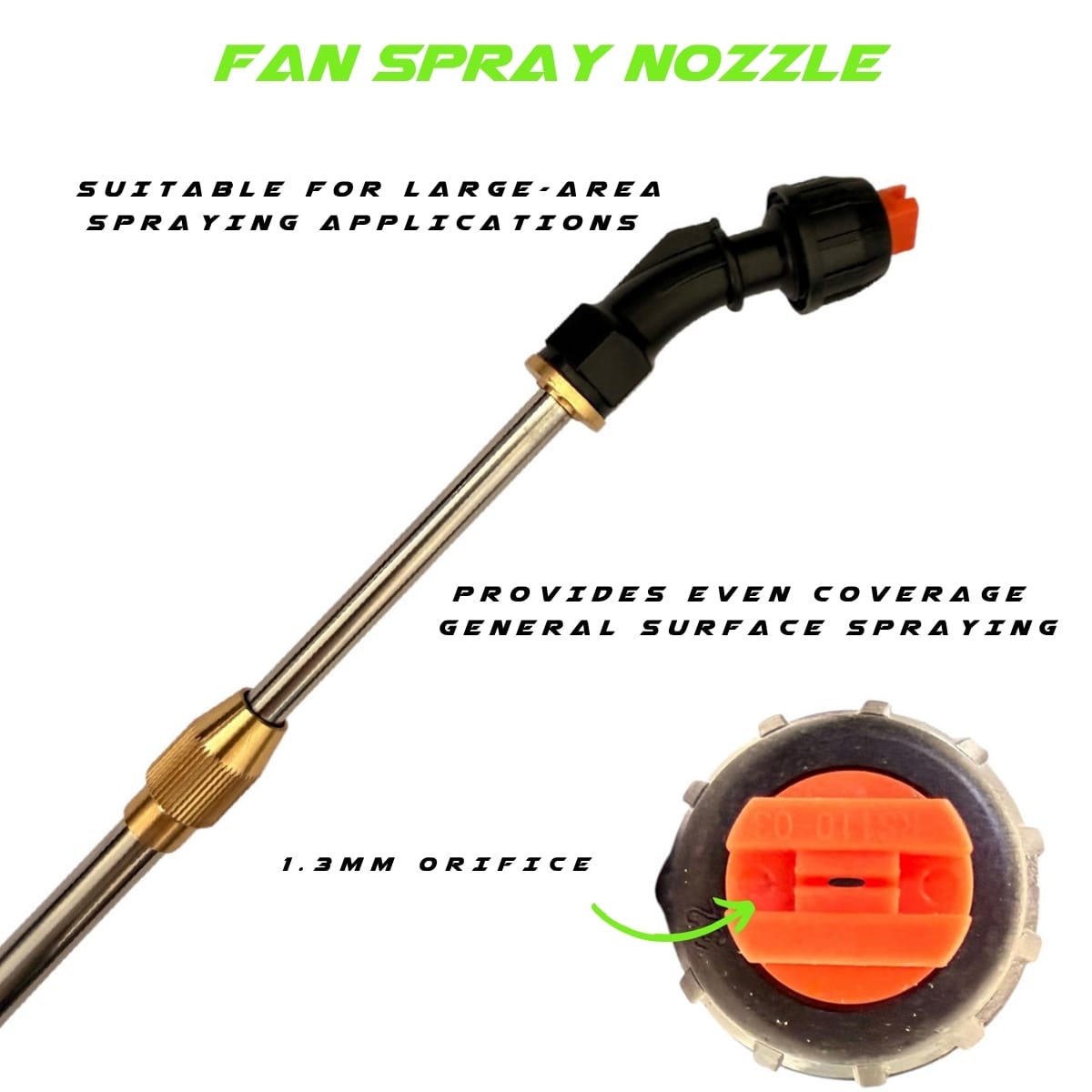

• 1 x Fan spray nozzle 1.3mm

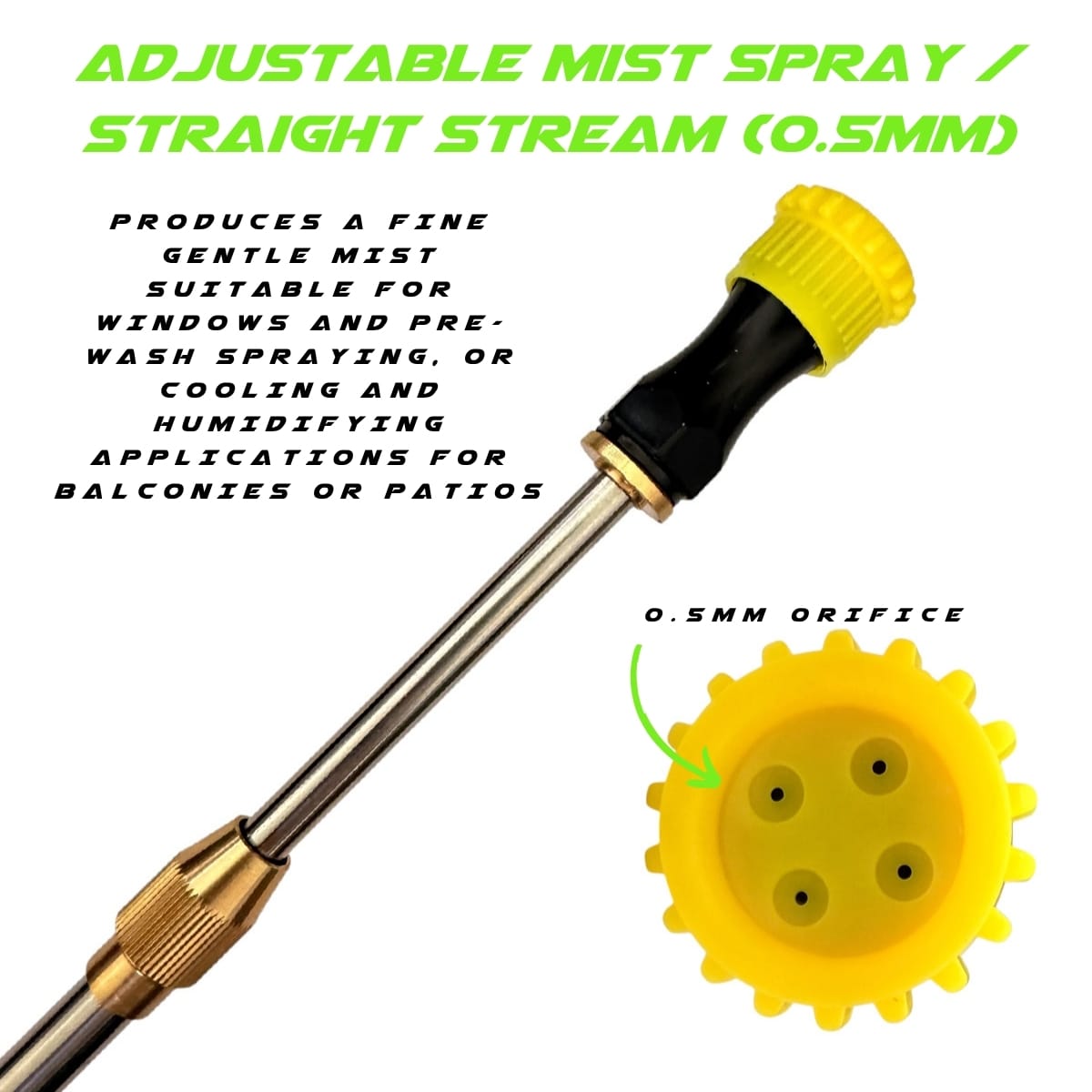

• 1 x Adjustable mist spray / straight stream nozzle 0.5mm

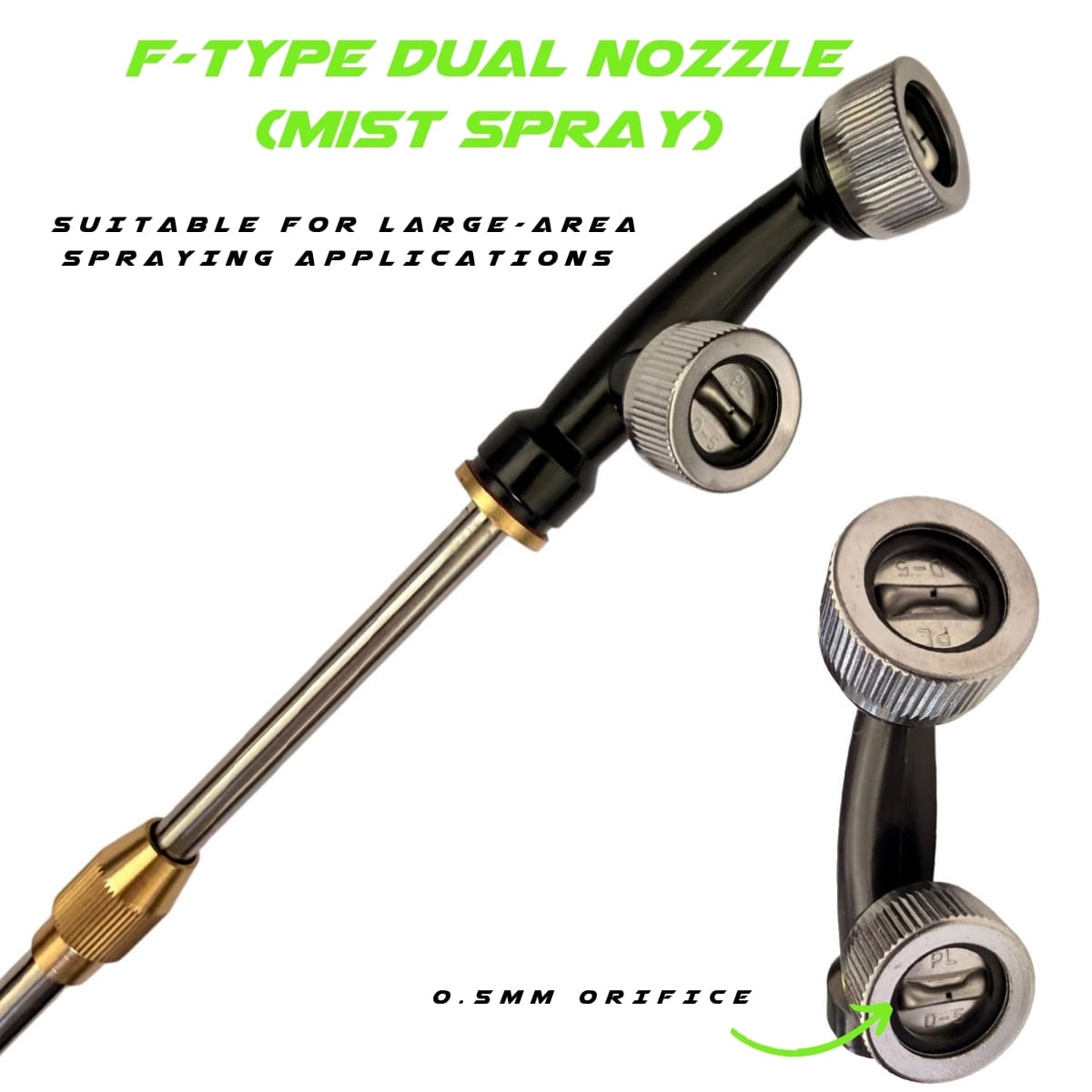

• 1 x F type dual nozzle (mist spray)

Connector Options:

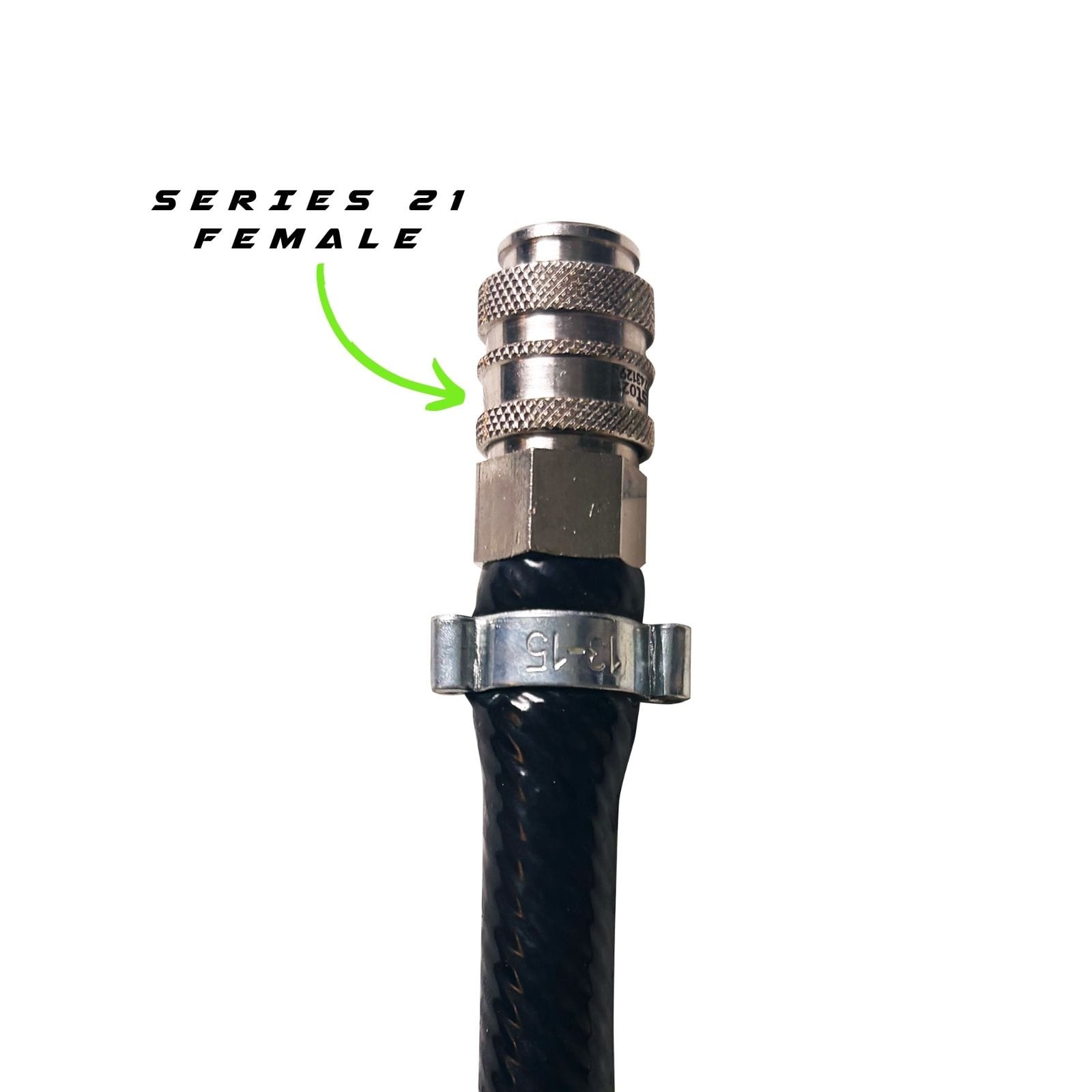

• Series 21 Female

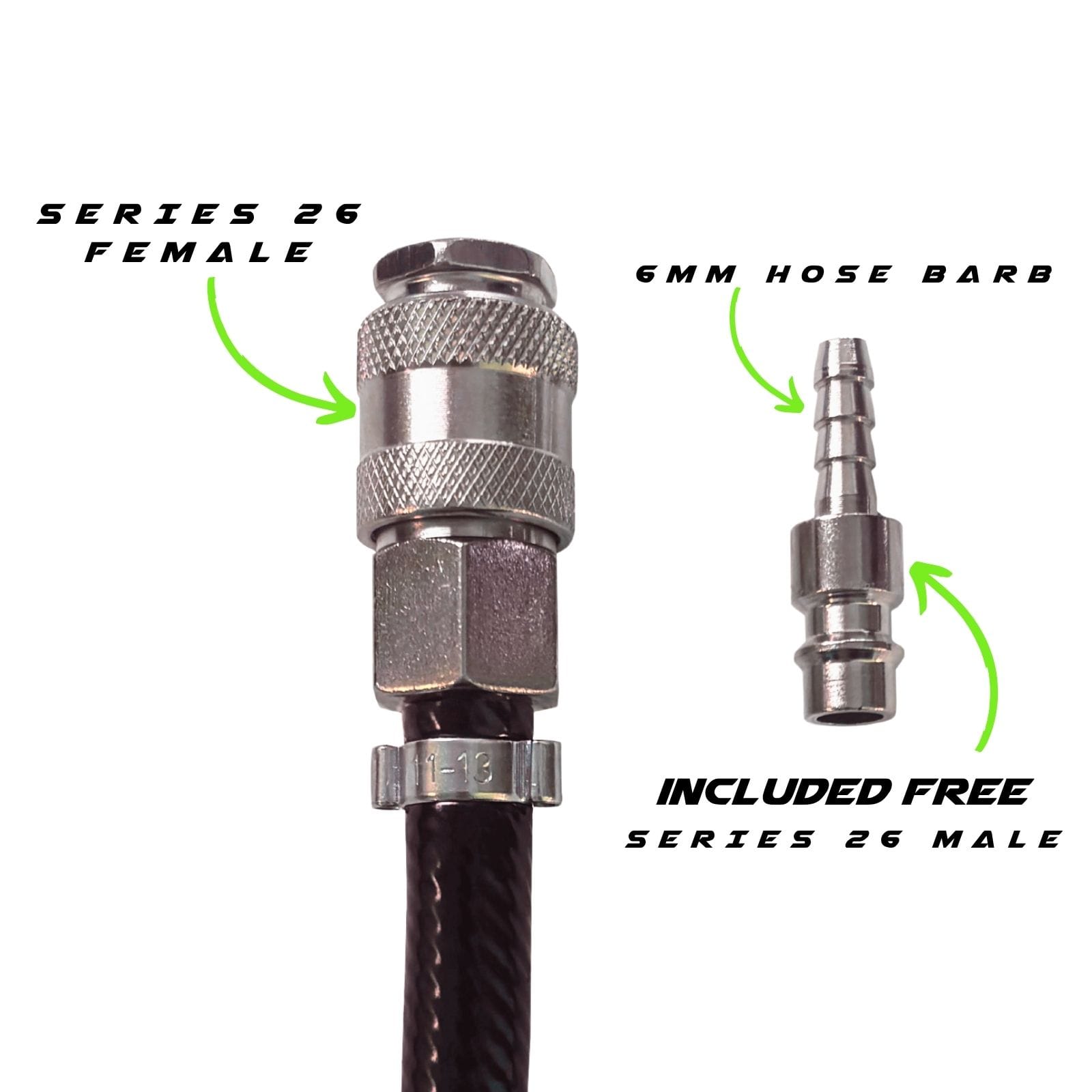

• Series 26 Female (includes free Series 26 Male, 6mm hose barb)

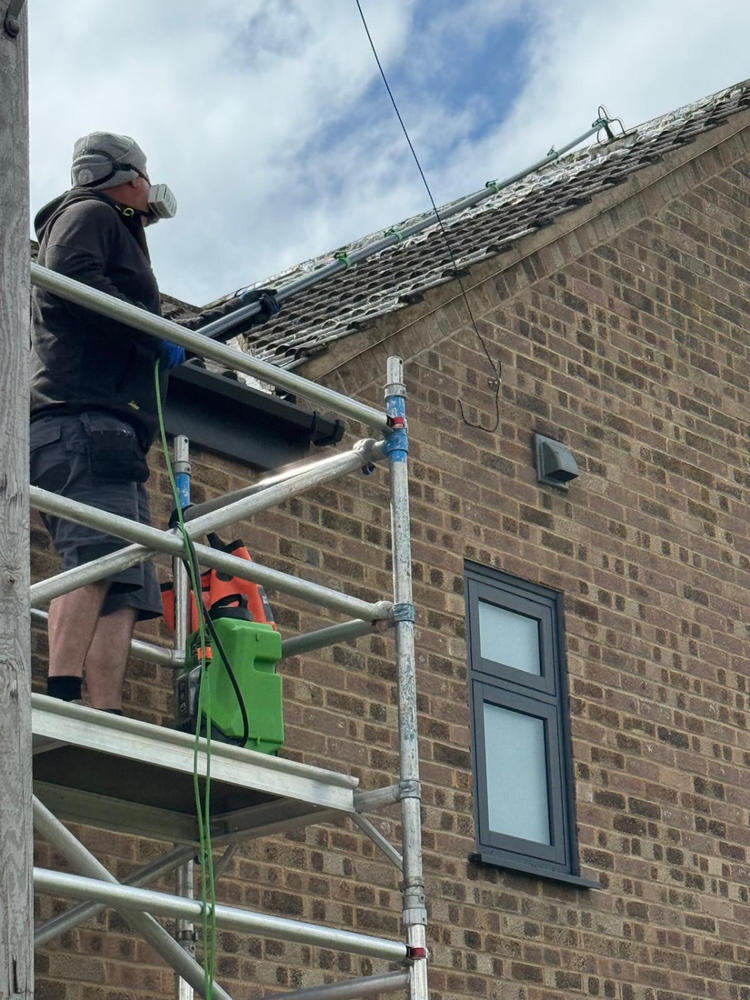

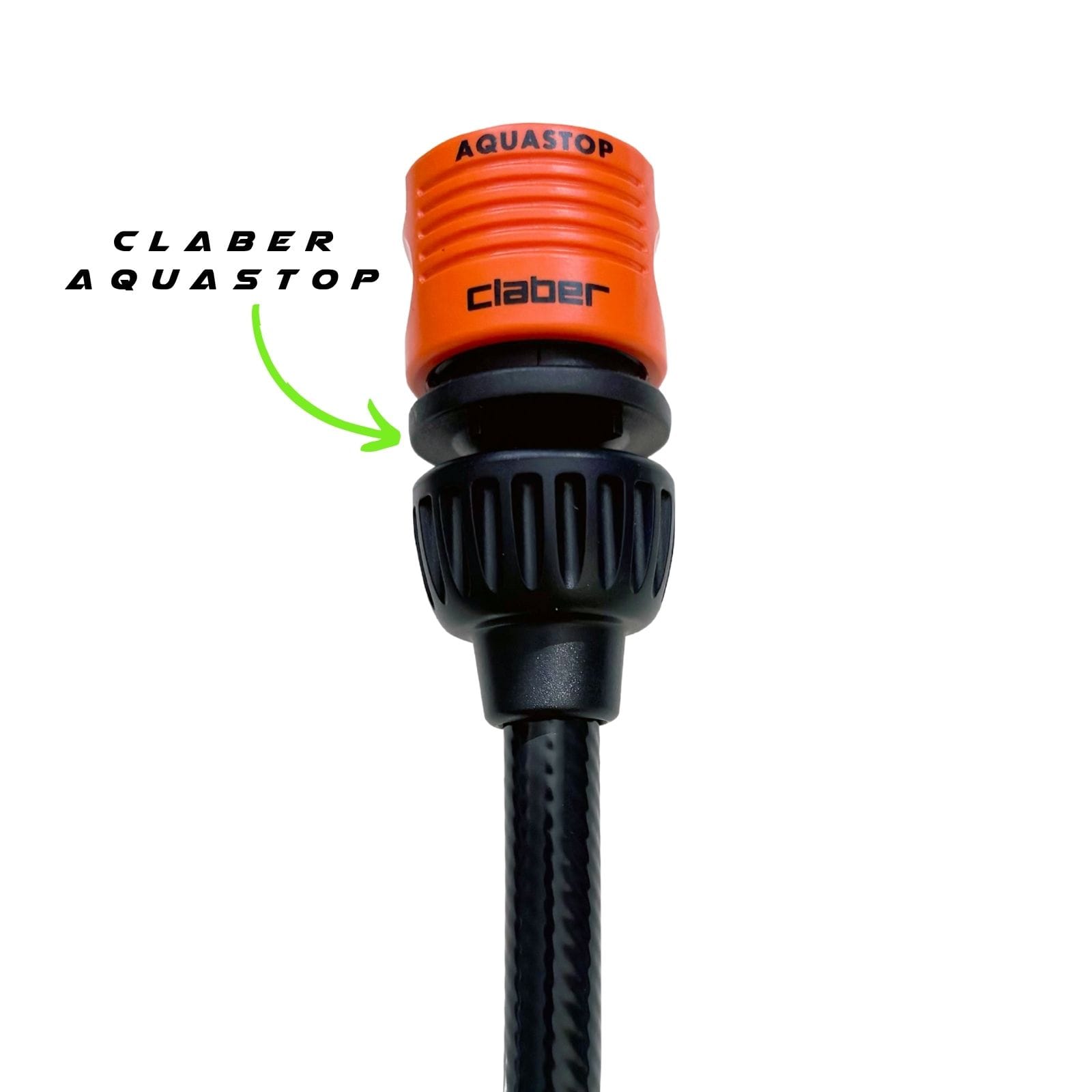

• Claber® Aquastop

After each use, rinse out the solution with clean water and ensure the pump and hose are thoroughly flushed through for 3-5 minutes before storage. This is to ensure that spray materials do not harden and do not block the nozzles, hose and shut-off valve.

Sealers: Water-based sealers are generally suitable for use with the backpack as long as the solution is not too thick and is properly filtered before use. The viscosity of oil-based sealers may be too thick for standard spraying.

Safety Information:

Chemicals Not Recommended: This sprayer is equipped with chemical-resistant sealing materials and is suitable for most spraying applications.

To avoid damage to sprayer components such as the nozzle, pump, tank, seals, and hose, the following chemicals or liquids are not recommended for use:

• Strong acids or strong alkaline chemicals
• Strong oxidizing agents
• Solvent-based liquids
• Flammable, explosive, or highly volatile liquids
• High-concentration bleach or disinfectants
• Liquids containing undissolved powders or solid particle
• High-viscosity liquids, paints, coatings, or adhesives
• Highly concentrated pesticides that have not been properly diluted

Use of incompatible chemicals may result in:

• Seal deterioration
• Nozzle blockage
• Component corrosion
• Leakage
• Reduced spraying performance
• Shortened product lifespan

After use, thoroughly rinse the inside of the sprayer and nozzle with clean water.

Always follow the chemical manufacturer’s safety instructions before use.
Never fill the sprayer with hot liquids (max temp 29°C).

Always wear protective clothing, respirator, gloves, eye protection, etc., when using chemicals.

This product is designed to apply chemicals that may be harmful and could cause serious personal injury if inhaled or brought into contact with the user.

Our current spray lance is made of stainless steel and brass, which offers excellent strength and pressure resistance. However, hypochlorite is a highly oxidizing liquid. Long-term use will corrode the brass and affect the stainless steel.  Occasional use will not cause rapid corrosion.  We have plastic lance sections available here which can be used with the trigger and nozzle for SH application. These sections are not extendable but can be joined together.

Upgrade your window cleaning setup by pairing the GVS Backpack Sprayer with our window cleaning pole packages.
